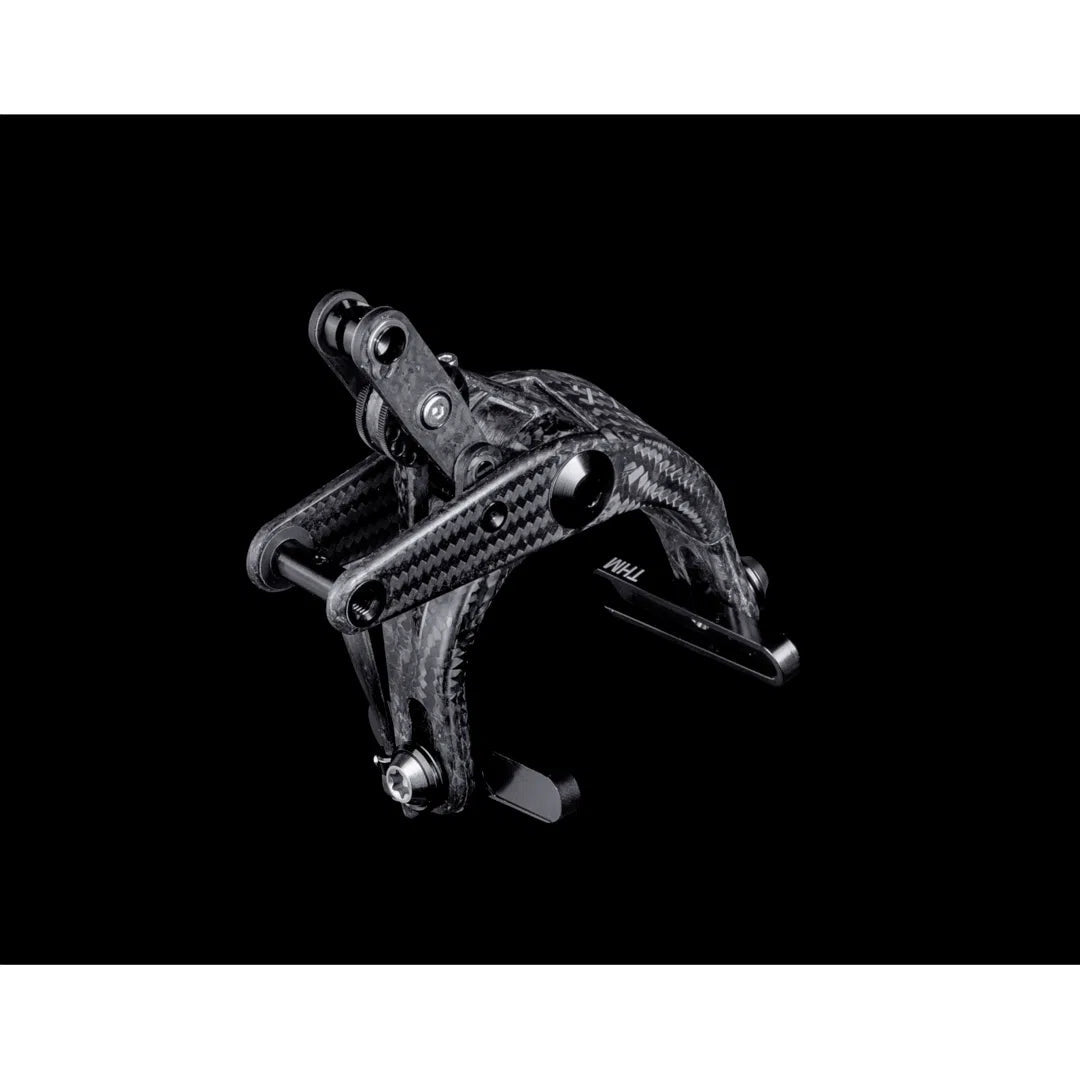

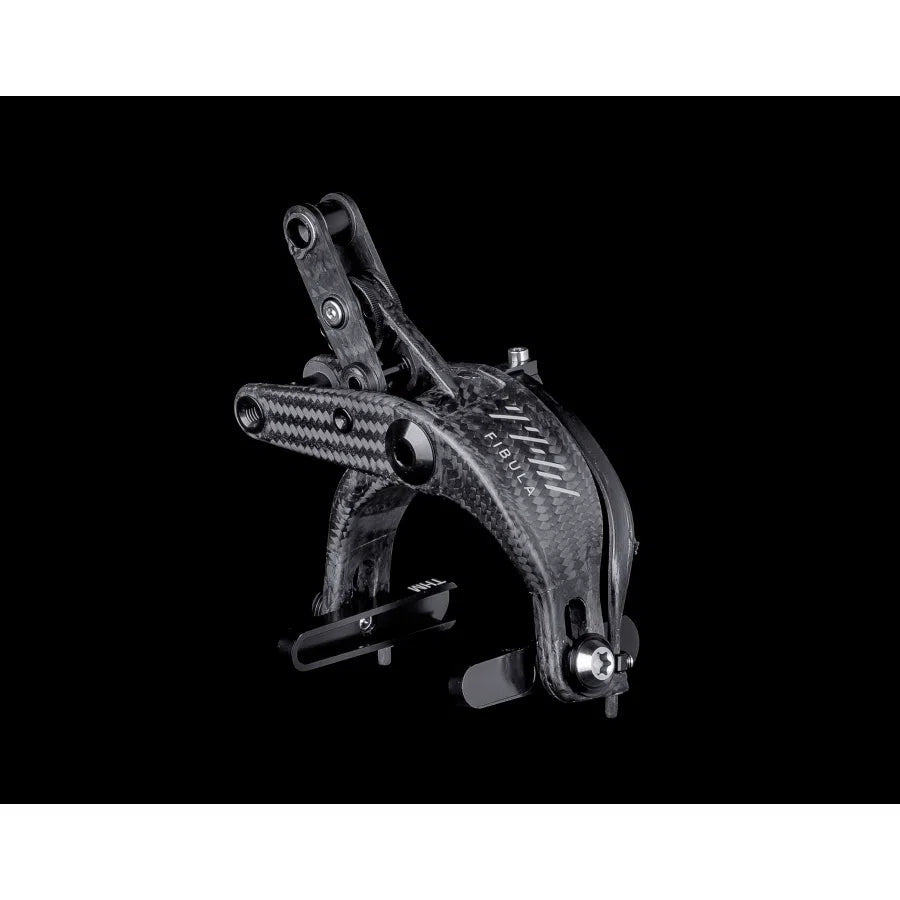

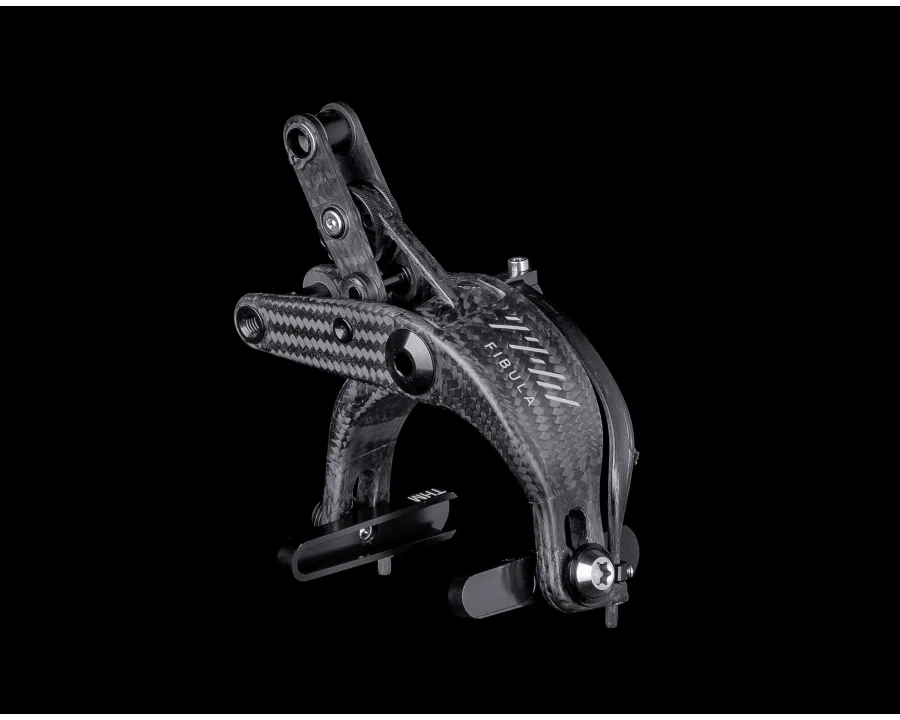

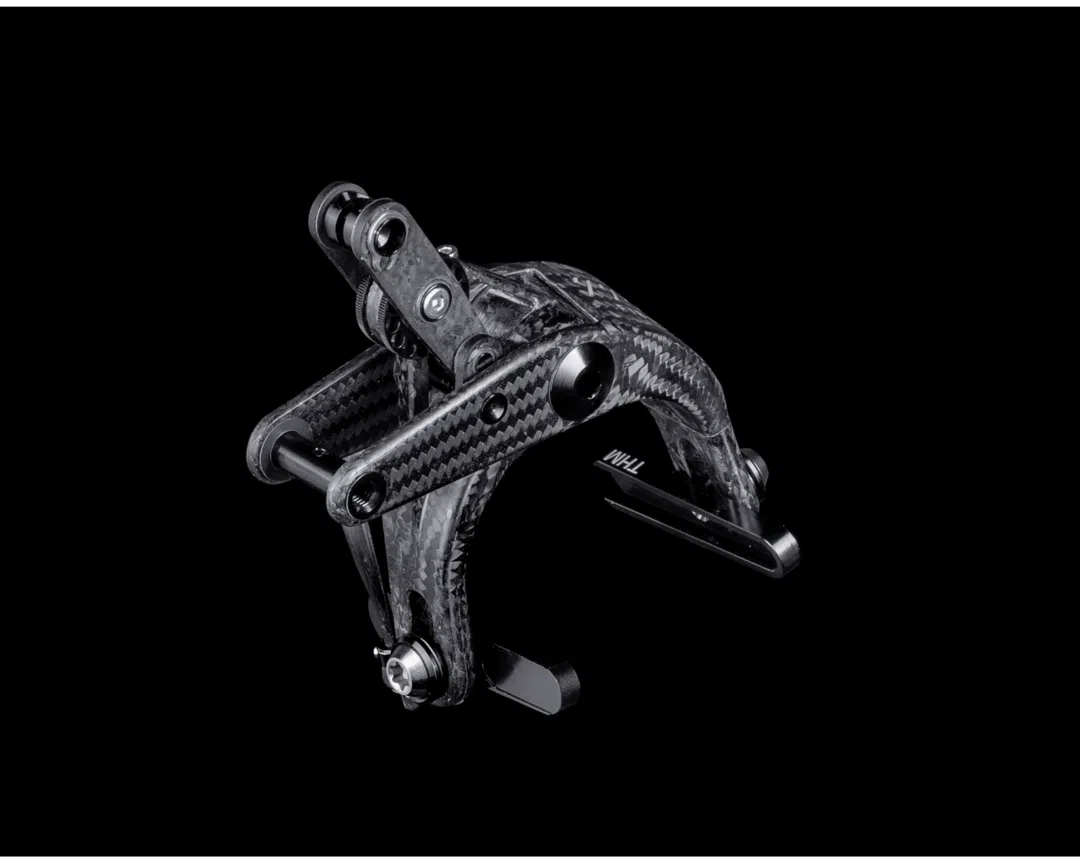

THM Brakes Fibula

New Fibula is a super-lightweight brake designed for modern wide rims, utilizing resin transfer molding for improved tolerancing and strength-to-weight ratio. The adjustable cam allows compatibility with rims of 19–30 mm width without changing the cable clamp point, making it ideal for various wheelsets and tires up to 25 mm wide. With a pull ratio optimized for Shimano, SRAM, and Campagnolo levers, the pair weighs only 120 g, remaining the lightest brakeset available.

• Weight: 120 g without brakepads (61 g front / 59 g rear)
• Mounting: Useable for wide and narrow rims (from 19 mm to 30 mm) without changing the cable fixing. Perfect for changing between wide competition wheels and narrow training wheels.
• Compatible brakepads: All brakepads suitable for Shimano® Standard
• Compatible brake levers: The THM-Fibula racing brake is compatible with all prevalent brake levers.
• Rim: The brake pads are about 33 mm wide apart in their fully open position. Rims with a width of 19 mm to 30 mm can be used with the Fibula.
• Motion ratio brakes: 1:1,5 front, 1:1,5 rear
• Max. Permissible total weight (Rider+bicycle+luggage): 110 kg (243 lb)
