THM Fork Scapula CT Matte
THM Fork Scapula CT Matte

€839,00

We ship it today if you order it within 2HRS 31 MIN

Notify me when back in stock

PRODUCT OVERVIEW

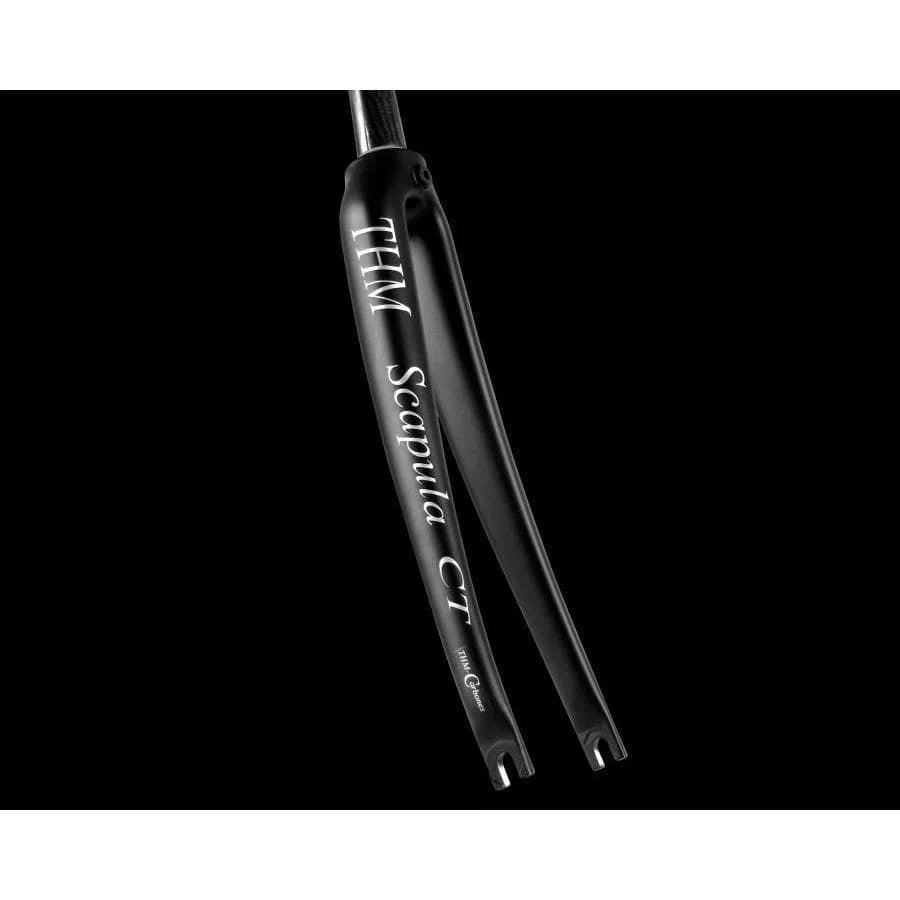

Scapula is an all-carbon fiber racing fork that’s engineered without compromise. It’s designed from scratch and made entirely by hand — even the tools to build it were designed and made in-house.

Only this way can we be sure it meets our standards. Its design is unique: the load-carrying carbon fibers run uninterrupted from dropouts to the top of the steerer.

Nothing is glued; all is designed and built in one piece for the smooth transfer of forces.

Wall thicknesses are precisely dimensioned in the correct plane to resist shock loads. Even the steerer has an oval interior cross-section. With a lateral stiffness of 55 N/mm deflection and longitudinal stiffness of 60 N/mm, Scapula CT is stiff and safe in all conditions.

Scapula CT’s weight, with steerer cut to a typical 200 mm and including our unique pre-load mechanism, is 275 g — yet this fork is specified for a maximum all-up load of 110 kg (243 lb)!


TECHNICAL INFO

Steerer diameter

 1⅛ - 1¼ tapered

Weight

260 g (0.61 lb) w/ 200 mm steerer
280 g (0.65 lb) w/ 300 mm steerer

Steerer length

300 mm; can be cut down by 130mm (minimum length 170 mm)

Integrated fork cone

45°
optional 36° (on request)

Rake

45 mm

Fork crown diameter

53 mm

Length (dropout to crown race)

372 mm

Max. Tire clearance

25 mm

Max. Permissible total weight
(Rider+bicycle+luggage)

110 kg (243lb)
