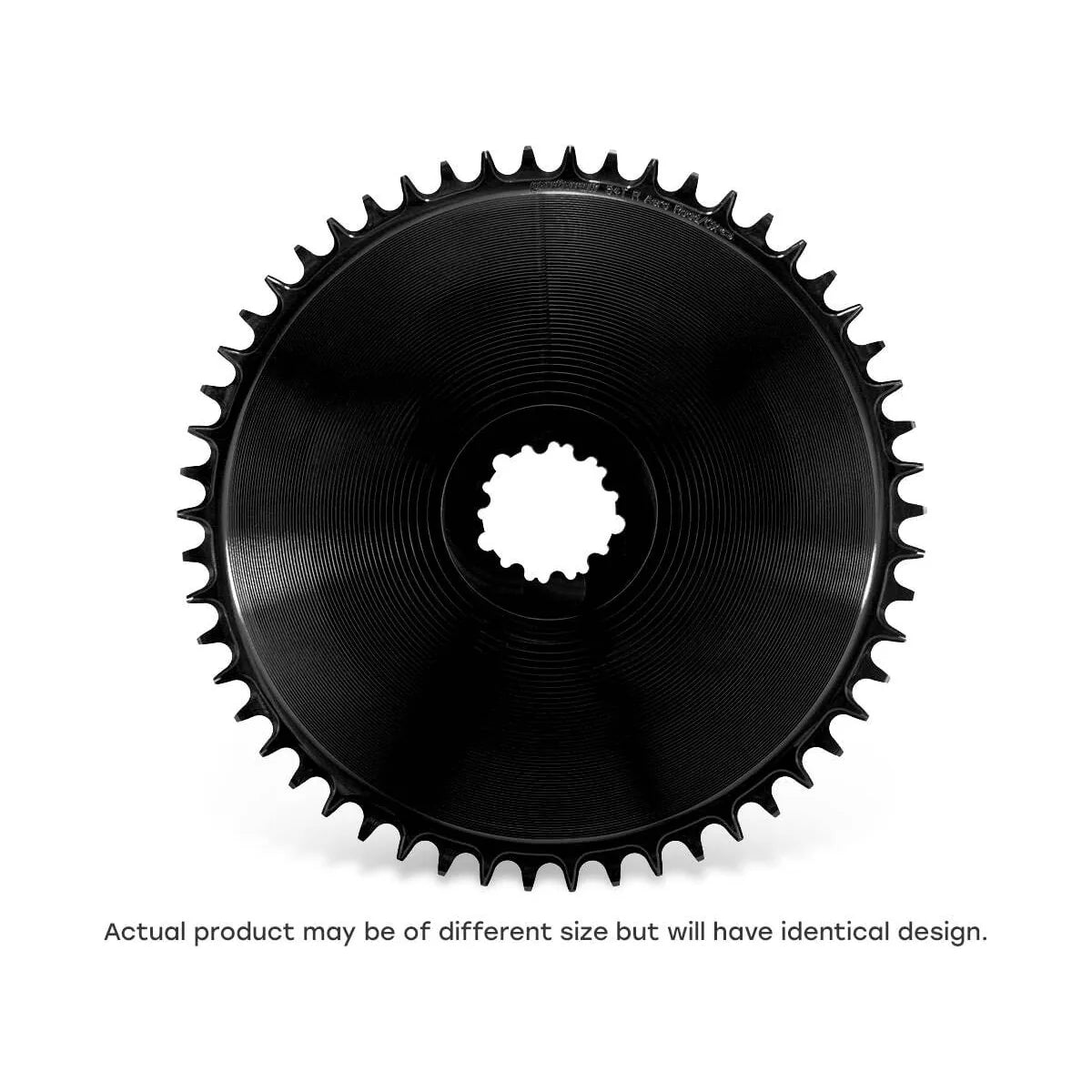

GARBARUK DM Road Aero Chainring for SRAM 3-Bolt, Round

Black
€101,68
€101,68
Tax Included
EU Destination Selected (Spain)

Out of stock

Product not available to collect today in store

The essentials

Best for

  • 1x road
  • Aero builds
  • Older SRAM cranks
GARBARUK DM Road Aero Chainring for SRAM 3-Bolt, Round - Black

Technologies

Specifications

MountSRAM 3-bolt direct mount
Compatible cranksetsSRAM Force 1, Force 22, Rival 1, Rival 22, S-952, S-902; Cane Creek eeWings All-Road
Offset, round (mm)6.5 (40T–44T), 5.9 (46T), 5.3 (48T), 3.7 (50T), 1.9 (52T–54T)
Weight107 g (40T) – 160 g (52T) (Garbaruk)
Chain compatibilityall 9-, 10- and 11-speed chains, SRAM 12-speed MTB chains (Eagle and T-Type), KMC, Shimano HG+ and SRAM AXS Flattop chains
Made inPoland (Garbaruk)

Garbaruk tooth profile

Garbaruk's chainring teeth have a special shape for tighter chain contact and softer pedalling, increased tooth height to hold the chain when the bike shakes over rough ground, and variable tooth thickness to prevent chain drops.

Chamfered edges and wide mud gap

Chamfered edges and a wide gap between the teeth keep mud from packing into the ring (Garbaruk).

1x weight saving

Going 1x with a Garbaruk ring saves 150–400 g on the whole bike, without a front derailleur or chain guide (Garbaruk). Direct-mount rings also drop the crank spider.
GARBARUK DM Road Aero Chainring for SRAM 3-Bolt, Round - Black

Compare with

GARBARUK DM Road Aero Chainring for SRAM 3-Bolt, Round - BlackThe aero version of Garbaruk's SRAM 3-bolt direct-mount ring, for Force 1/22, Rival 1/22 and Cane Creek eeWings All-Road cranks. GARBARUK DM Road Aero Chainring for SRAM 3-Bolt, Oval - Black Choose it for the oval version: Garbaruk says it evens out pedalling torque and eases climbing on loose ground.
Regular price €101,68€101,68
Safety rating ——
MountSRAM 3-bolt direct mountSRAM 3-bolt direct mount
Compatible cranksetsSRAM Force 1, Force 22, Rival 1, Rival 22, S-952, S-902; Cane Creek eeWings All-RoadSRAM Force 1, Force 22, Rival 1, Rival 22, S-952, S-902; Cane Creek eeWings All-Road
Offset, round (mm)6.5 (40T–44T), 5.9 (46T), 5.3 (48T), 3.7 (50T), 1.9 (52T–54T)—
Weight107 g (40T) – 160 g (52T) (Garbaruk)108 g (42T) – 154 g (50T) (Garbaruk)
Chain compatibilityall 9-, 10- and 11-speed chains, SRAM 12-speed MTB chains (Eagle and T-Type), KMC, Shimano HG+ and SRAM AXS Flattop chainsall 9-, 10- and 11-speed chains, SRAM 12-speed MTB chains (Eagle and T-Type), KMC, Shimano HG+ and SRAM AXS Flattop chains
Made inPoland (Garbaruk)Poland (Garbaruk)
Offset, oval (mm)—6.5 (40T–42T), 5.7 (44T), 4.6 (46T), 3.6 (48T), 2.5 (50T), 1.5 (52T), 2.5 (54T)
GARBARUK DM Road Aero Chainring for SRAM 3-Bolt, Round - Black

Frequently asked questions

Answered from this product’s published information. Questions about orders or anything else go to our team.

How much weight does a 1x Garbaruk setup save?

Garbaruk quotes a 150–400 g saving on the whole bike once the front derailleur and chain guide go; direct-mount rings also remove the crank spider.

Oval or round Garbaruk chainring?

Same mount, material and tooth profile. Garbaruk says the oval ring spreads pedalling torque more evenly, narrows the dead spots, eases climbing on soft or slippery ground and improves efficiency; the round ring gives the familiar, constant feel. The oval ring is directional, so it must be fitted the right way round.

Which chains work with Garbaruk chainrings?

Garbaruk lists its chainrings as compatible with all 9-, 10- and 11-speed chains, SRAM 12-speed MTB chains (Eagle and T-Type), KMC, Shimano HG+ and SRAM AXS Flattop chains.

What does the chainring offset mean?

Offset moves the teeth towards or away from the frame to set the chainline. Garbaruk publishes the offset for every size and shape in the spec table of each model (shown under Technologies); pick the size whose offset suits your frame and cassette.
Size

Description

The aero version of Garbaruk's SRAM 3-bolt direct-mount ring, for Force 1/22, Rival 1/22 and Cane Creek eeWings All-Road cranks.

  • Mount: SRAM 3-bolt direct mount
  • Fits: SRAM Force 1, Force 22, Rival 1, Rival 22, S-952, S-902; Cane Creek eeWings All-Road
  • Offset (mm): 6.5 (40T–44T), 5.9 (46T), 5.3 (48T), 3.7 (50T), 1.9 (52T–54T)
  • Garbaruk tooth profile for chain retention; 150–400 g saved going 1x

Available variants

  • 40T — EAN 5907441549318 · SKU GARBA5907441549318
  • 42T — EAN 5907441549394 · SKU GARBA5907441549394
  • 44T — EAN 5907441549479 · SKU GARBA5907441549479
  • 46T — EAN 5907441549554 · SKU GARBA5907441549554
