What do I need to fit the RED XPLR power-meter ring?

SRAM's thread-mount chainring removal tool (TL-PMT-TCR-A1). Garbaruk's ring keeps the original 6.5 mm offset and works with RED XPLR AXS and Force AXS power meters.

Oval or round Garbaruk chainring?

Same mount, material and tooth profile. Garbaruk says the oval ring spreads pedalling torque more evenly, narrows the dead spots, eases climbing on soft or slippery ground and improves efficiency; the round ring gives the familiar, constant feel. The oval ring is directional, so it must be fitted the right way round.

Which chains work with Garbaruk chainrings?

Garbaruk lists its chainrings as compatible with all 9-, 10- and 11-speed chains, SRAM 12-speed MTB chains (Eagle and T-Type), KMC, Shimano HG+ and SRAM AXS Flattop chains.

What does the chainring offset mean?

Offset moves the teeth towards or away from the frame to set the chainline. Garbaruk publishes the offset for every size and shape in the spec table of each model (shown under Technologies); pick the size whose offset suits your frame and cassette.

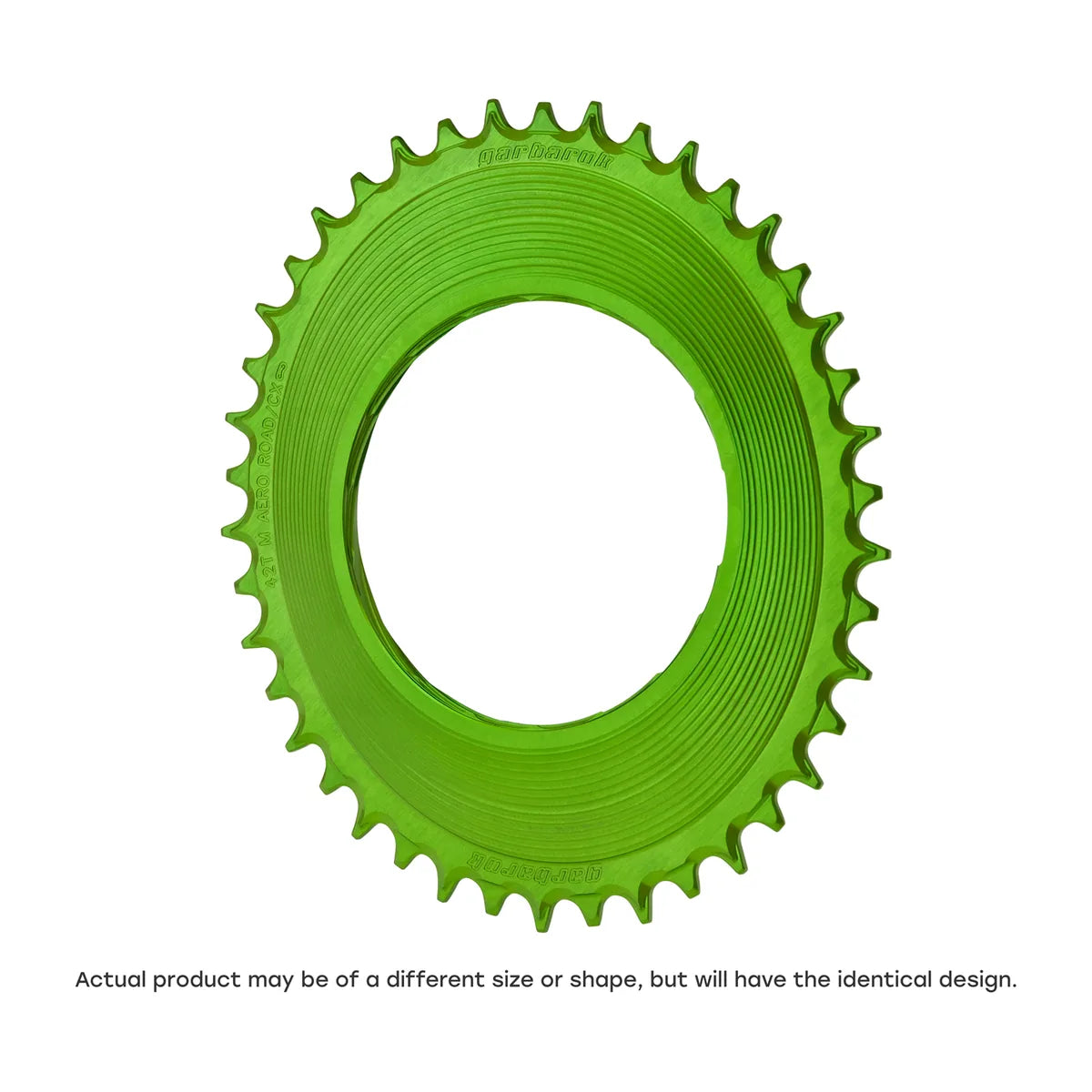

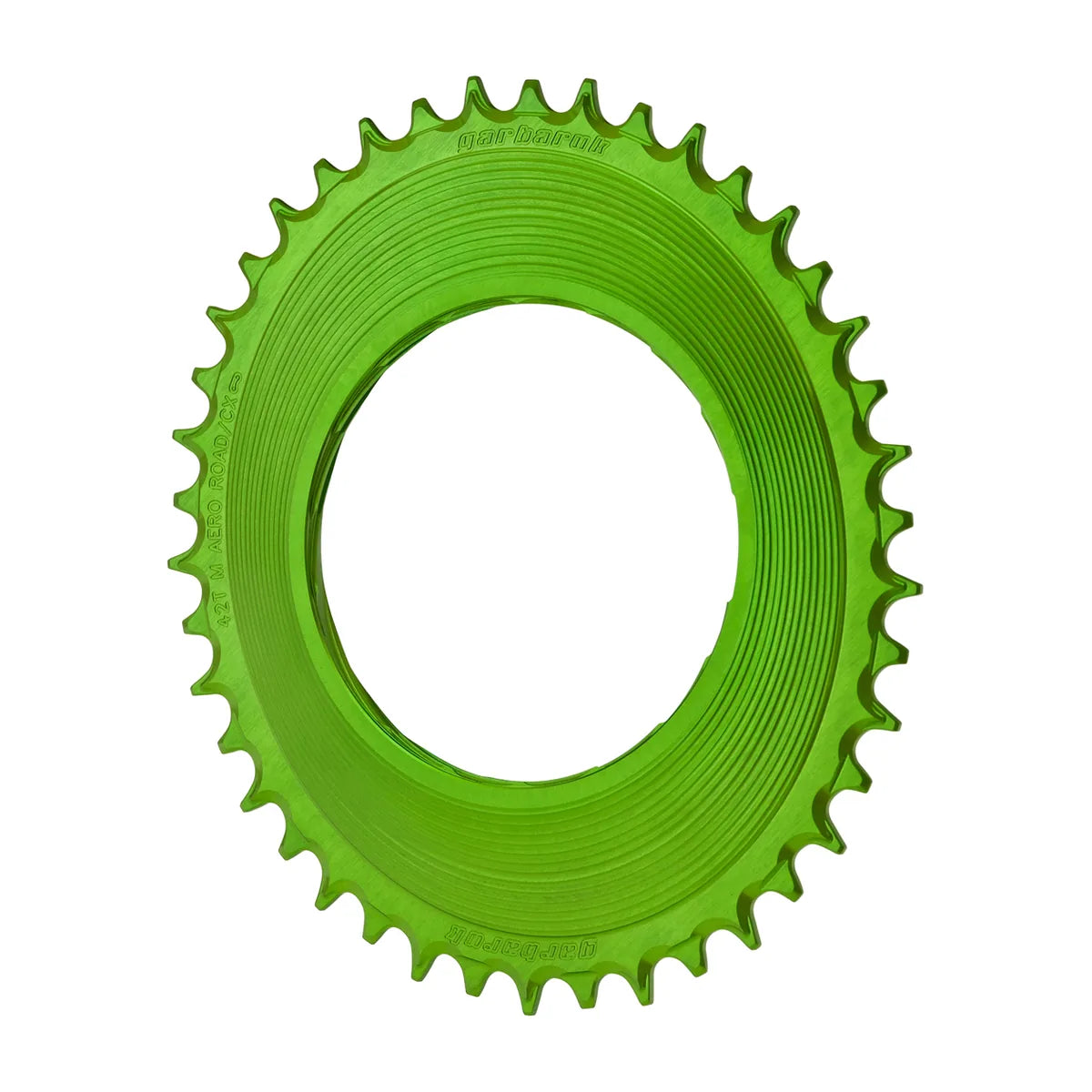

GARBARUK Road Thread Mount Chainring for SRAM RED XPLR AXS Power Meter, Oval

Green

€120,00

Tax Included
EU Destination Selected (Spain)

Out of stock

Product not available to collect today in store

The essentials

Best for

Gravel racing
1x road
Power meter cranks

GARBARUK Road Thread Mount Chainring for SRAM RED XPLR AXS Power Meter, Oval - Green

Technologies

Specifications

Mount	SRAM thread mount (power meter spider)
Compatible cranksets	All cranksets with a RED XPLR AXS power meter; power meters: RED XPLR AXS, Force AXS
Offset, oval (mm)	6.5 (38T–46T)
Weight	86 g (38T) – 135 g (46T) (Garbaruk)
Chain compatibility	all 9-, 10- and 11-speed chains, SRAM 12-speed MTB chains (Eagle and T-Type), KMC, Shimano HG+ and SRAM AXS Flattop chains
Made in	Poland (Garbaruk)

Oval chainring

Garbaruk says its oval rings distribute pedalling torque more evenly, narrow the dead spots of the pedal stroke for a smoother ride, make climbing easier on soft and slippery ground and increase pedalling efficiency.

Garbaruk tooth profile

Garbaruk's chainring teeth have a special shape for tighter chain contact and softer pedalling, increased tooth height to hold the chain when the bike shakes over rough ground, and variable tooth thickness to prevent chain drops.

Chamfered edges and wide mud gap

Chamfered edges and a wide gap between the teeth keep mud from packing into the ring (Garbaruk).

1x weight saving

Going 1x with a Garbaruk ring saves 150–400 g on the whole bike, without a front derailleur or chain guide (Garbaruk). Direct-mount rings also drop the crank spider.

GARBARUK Road Thread Mount Chainring for SRAM RED XPLR AXS Power Meter, Oval - Green

Compare with

	GARBARUK Road Thread Mount Chainring for SRAM RED XPLR AXS Power Meter, Oval - GreenGarbaruk's thread-mount 1x ring for SRAM RED XPLR AXS power-meter cranks: a direct replacement for the original ring with the same 6.5 mm offset, Garbaruk's narrow-wide tooth profile and 115 g for a 42T round (Garbaruk)	GARBARUK Road Thread Mount Chainring for SRAM RED XPLR AXS Power Meter, Round - Black Choose it for the round version, with the classic constant feel.	GARBARUK DM Road Aero Chainring for SRAM 8-Bolt, Oval - Black Choose it for the aero version, with Garbaruk's full-face design.
Regular price	€120,00	€89,99	€107,79
Safety rating	—	—	—
Mount	SRAM thread mount (power meter spider)	SRAM thread mount (power meter spider)	SRAM 8-bolt direct mount
Compatible cranksets	All cranksets with a RED XPLR AXS power meter; power meters: RED XPLR AXS, Force AXS	All cranksets with a RED XPLR AXS power meter; power meters: RED XPLR AXS, Force AXS	RED XPLR, Force 1, Force 1 AXS (incl. Wide), Force AXS, Force XPLR (AXS), Rival 1 AXS (incl. Wide), Rival XPLR (AXS), Apex 1 Wide, Apex AXS
Offset, oval (mm)	6.5 (38T–46T)	—	6.5 (40T–46T), 5.9 (48T), 4.5 (50T), 3.5 (52T), 2.5 (54T)
Weight	86 g (38T) – 135 g (46T) (Garbaruk)	87 g (38T) – 137 g (48T) (Garbaruk)	110 g (40T) – 166 g (50T) (Garbaruk)
Chain compatibility	all 9-, 10- and 11-speed chains, SRAM 12-speed MTB chains (Eagle and T-Type), KMC, Shimano HG+ and SRAM AXS Flattop chains	all 9-, 10- and 11-speed chains, SRAM 12-speed MTB chains (Eagle and T-Type), KMC, Shimano HG+ and SRAM AXS Flattop chains	all 9-, 10- and 11-speed chains, SRAM 12-speed MTB chains (Eagle and T-Type), KMC, Shimano HG+ and SRAM AXS Flattop chains
Made in	Poland (Garbaruk)	Poland (Garbaruk)	Poland (Garbaruk)
Offset, round (mm)	—	6.5 (38T–46T)	—

Size 38T 40T 42T 48T

Description

Garbaruk's thread-mount 1x ring for SRAM RED XPLR AXS power-meter cranks: a direct replacement for the original ring with the same 6.5 mm offset, Garbaruk's narrow-wide tooth profile and 115 g for a 42T round (Garbaruk). Fitting needs SRAM's thread-mount chainring removal tool (TL-PMT-TCR-A1). This is the oval version: Garbaruk says it evens out pedalling torque and eases climbing on loose ground.

Mount: SRAM thread mount (power meter spider)
Fits: All cranksets with a RED XPLR AXS power meter; power meters: RED XPLR AXS, Force AXS
Offset (mm): 6.5 (38T–46T)
Garbaruk tooth profile for chain retention; 150–400 g saved going 1x
